Auto prime pump

The SPDW range of pumps has been designed with a clear focus on reliability, efficiency and durability. Featuring a 100% mechanical priming system, the DS series pumps quickly prime and re-prime, even from dry conditions. The heavy build style of both pump and canopy make the SPDW range perfect for use in the strenuous contractor market.

World-class performance

The SPDW range is built to be deployed on the most demanding dewatering and sewage bypassing applications. Using high efficiency pumps and state-of-the-art diesel engines, the pumps offer maximum performance at minimal cost, fully in-sync with the company philosophy of “Lowest cost of ownership”.

Complete package design

• Complete in-house design & production

• Over 20 years of experience in the market

• Extensive testing facility in-house

• Contemporary & functional design

• Durable & eco-friendly materials

• Custom builds available

Sustainability

• High efficiency pumps, greater than 75%, minimizing fuel consumption

• Emissions in accordance with EU stage & US

EPA Tier regulations

• Corrosion free hot dip galvanized frame

• Corrosion free epoxy cover panel

• 100% Oil-spill free priming system

Pre-sale service

• Inquiry and consulting support, 20 years pump

technical experience

• One to one sales engineer technical service

• Hot-line of service is available in 24h,

responded in 8h

After-sale service

• Technical training and equipment evaluation

Installation and debugging troubleshoot

• Maintenance, update and improvement

• Provide free technical support for whole life of the products

• Keep whole life contacting with clients, get feedback on use of the equipment and make the quality of the products continually perfected

TECHNICAL SPECITICATIONS

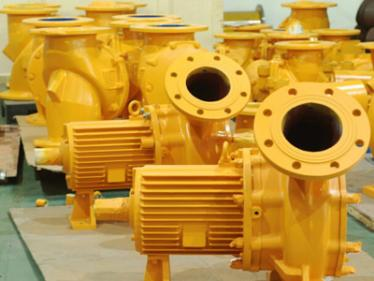

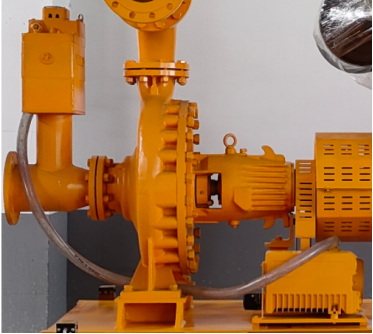

Auto priming pump

Pump casing: SG iron casting (Spheroidal Graphite Iron)
Impeller: Stainless steel 316
Bearing: NTN or NSK
Shaft: Stainless steel 431
Shaft seal: Mechanical seal
Coupling: Flexible tyre type of coupling
Seal face：SIC

Fully auto priming facility

Drive: Tooted belt continuous drive
Priming water tank: Aluminum or Cast iron
Float box: Stainless steel 304 with polymer
Cooling medium: Water
Non return valve: SG iron

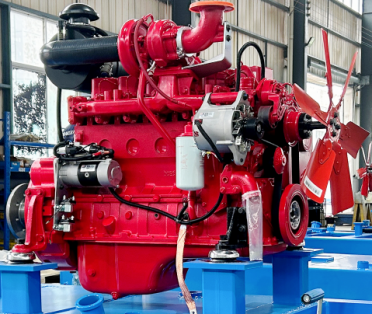

Diesel engine

Engine brand: Cummins
Engine model: 4BT3.9-P50
Power: 36kw/50HP
Engine speed: 1800rpm
Displacement: 3.9L
Number of cylinders: 4
Cooling system: water cooled

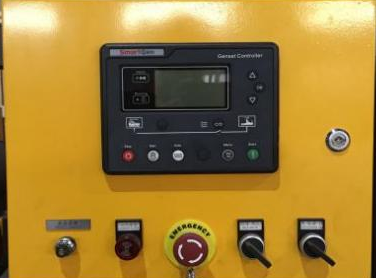

Controller

◇Manual start/stop system
◇Start/stop auto system
◇Tachometer
◇Hour counter
◇Warning light
◇ Running light
◇ Delay stop design
◇ Engine control panel with shutdown protection

Safety features

◇Low oil pressure shut down
◇High temperature shut down
◇High water temperature shut down
◇Over speed shut down
◇With charger for battery
◇Variable speed control
◇Emergency stop
