JYWQ Samll Sewage Submersible Pump

Short Description:

JYWQ series

JYWQ series submersible sewage pumps are specifically designed for pumping untreated waste water for domestic, commercial or municipal sources, such as the liquid containing hard solids and fibers, liquids, as well as dirty, sticky and slippery liquid. All pumps are provided with a well-adjusted tearing unit which can tear long fibers, bags, belts, grass, cloth strips and so forth before being discharged. Moreover, the pump would not get clogged without filter screen when working in waste water. In accordance with different needs, double guide rail automatic coupling installation system should be disposed, which could bring great convenience to installation and maintenance.


Feature

Description:

JYWQ series submersible sewage pumps are specifically designed for pumping untreated waste water for domestic, commercial or municipal sources, such as the liquid containing hard solids and fibers, liquids, as well as dirty, sticky and slippery liquid. All pumps are provided with a well-adjusted tearing unit which can tear long fibers, bags, belts, grass, cloth strips and so forth before being discharged. Moreover, the pump would not get clogged without filter screen when working in waste water. In accordance with different needs, double guide rail automatic coupling installation system should be disposed, which could bring great convenience to installation and maintenance.

YJWQ Advantage

Multifunction and high new flow technology  √

 Unique Sundry Filtered water motor cooling  √

Unique Prevent dirt precipitation- Stir Technology  √

High Efficiency, NO BLOCKED √

Avery short rotor Shaft Extension √

New cutting system √

Dry running  √

Installation type

Installation type

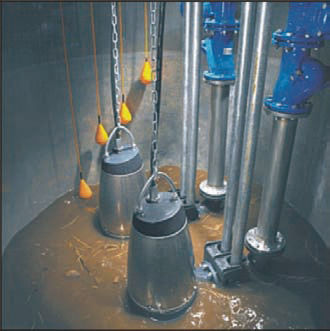

With QDC installation system
For easy of maintenance and repair pumps.

4

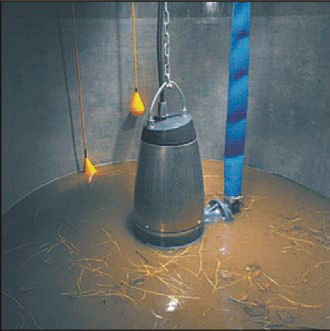

Moveable type installation
Can be placed in the pool for mobile Installation and also can be brings.

1

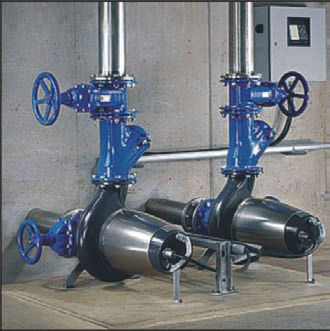

Dry installation-Horizontal type
Installation like pipe pump, maintenance is simple and clean, without additional cooling pump motor

 3

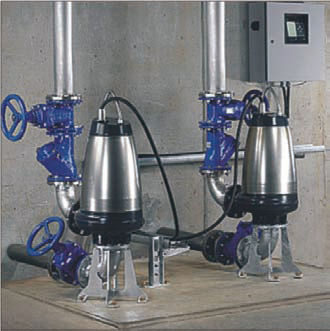

Dry installation-Vertical type
Installation like pipe pump, maintenance is simple and clean, without additional cooling pump motor

2

TECHNICAL DATA

Operation Parameter

Max Submersible Depth 20m
Capacity Max 350 m3/h
Head Max 35m
water PH 5.5-14
Liquid Temperature up to 50 ºC

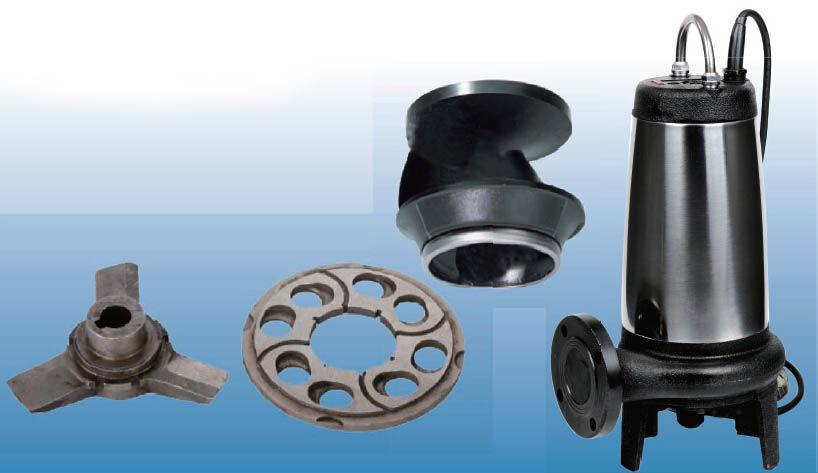

Main parts for JYWQ small submersible sewage pump

Part Material
Pump casing Cast iron,  Stainless steel  ​ 111
Impeller Cast iron,  Stainless steel
Motor casing Cast iron
Shaft Stainless steel
Cut system Harden Stainless steel

More details for JYWQ small submersible Sewage pumps please check with our engineer.

APPLICANT

Pump Applicant   Municipal commercial buildings Life waste water pumping station, drainage    Waste water pump station Adjust the pool groundwater Rainwater pump station
