API610 ANSI Chemical Process Standard Petrochemical Heavy Crude Fuel Oil Transfer Pump

Short Description:

Model No:ZA

ZA series processing pump are horizontal, singe stage, back pull-out design, they meet 10th version of ANSI/API610-2004.

For transferring clean and little contaminated, lower and high temperature, chemical neutral and corrosive liquid.


Feature

ZA series processing pump are horizontal, singe stage, back pull-out design, they meet 10th version of ANSI/API610-2004.

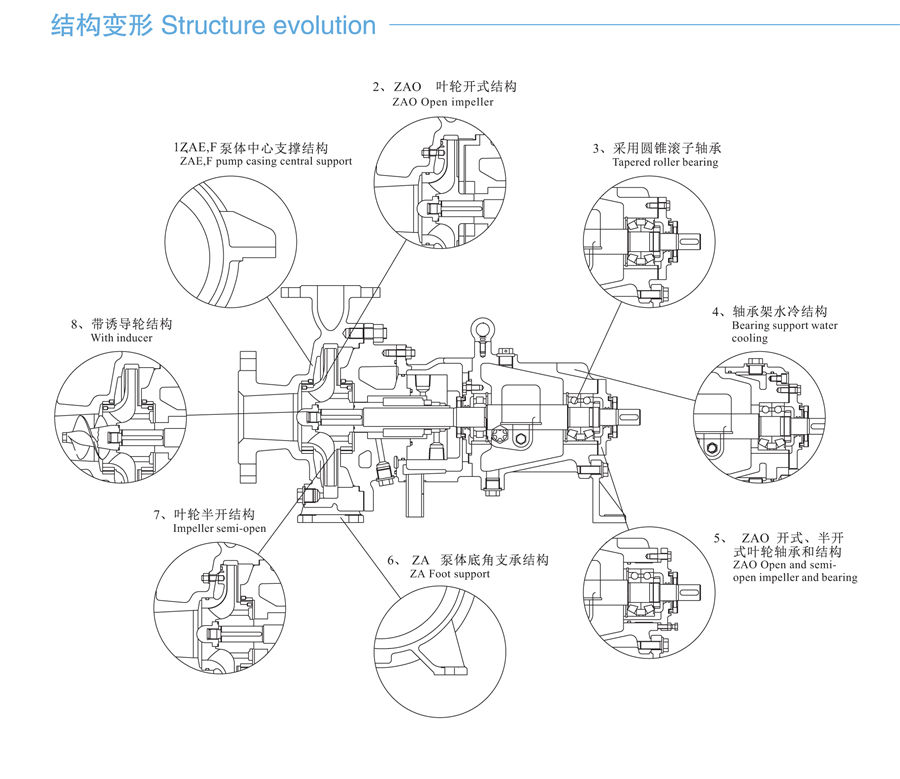

ZAO series are with radial split casing, and OH1 types of API610 pumps, ZAE and ZAF are OH2 types of API610 pumps. High generalization degree Hydraulic parts and bearings are same as ZA an ZAE series; Impeller is open or semi-open type, matched with front and back wear-resistant plate.

Applicable for transferring various liquids with solid, slag oars, viscous fluid etc.

Shaft with shaft sleeve, totally isolated to the liquid, avoid corrosion of shaft, improves lifespan of the pump set. Motor is with extended diaphragm coupling, easy and smart maintenance, without taking apart pipes and motor.

Mainly use for:

Refinery, petrol-chemical industry, coal processing and lower temperature engineering

Chemical industry, paper-making, pulp, sugar and such like normal processing industry

Sea water desalination

Auxiliary system of power station

Environment protection engineering

Ships and offshore engineering

Technical data

This type is API610 OH1, OH2 type pumps according to pressure.

Diameter DN 32-400mm
Capacity up to 2600 m3/h
Head up to 300m
Liquid Temperature -80~ 170 ºC
Working pressure ~ 2.5 MPa (Details will be refer to drawing of P-T, according to different temperature to select right materials)

11 10

Applicant

For transferring clean and little contaminated, lower and high temperature, chemical neutral and corrosive liquid. Refinery, petro-chemical industry, coal processing and lower temperature engineering.

Chemical industry, paper-making, pulp, sugar and such like normal processing industry;

Water supply plant and sea water desalination;

Heat supply and air-conditioning system;

Auxiliary system of power station;

Environment protection engineering;

Ships and offshore engineering.
