What Is a Well Point Dewatering Pump and How Does It Work?
A well point dewatering system is a versatile and widely used method for removing groundwater from shallow excavations. It operates by installing a series of small-diameter wells, called well points, around the perimeter of a site. These points connect to a central pump that creates a vacuum, drawing water out of the ground and lowering the water table. This creates a dry, safe, and stable environment for construction activities.
Understanding the Well Point System
The effectiveness of a well point system depends heavily on the site's geological conditions. The system is highly practical for managing groundwater across a variety of soil types.
· Deep well point systems show ideal performance in soils and rock with moderate to high permeability. This includes materials like sand and gravel, which allow water to move freely.
· The system remains effective even in less permeable soils. In fine, silty soil types, operators can place a clean sand filter around the wellpoint screens. This filter prevents the pump from drawing in fine particles, which reduces the risk of ground subsidence.
A powerful Well Point Dewatering Pump, like the TKFLO PUMPS TWP series, provides the necessary suction to handle these diverse conditions efficiently.
The Dewatering Process Explained
The dewatering process functions on a simple yet powerful vacuum principle. The pump, often a vacuum-assisted centrifugal model, connects to a suction header pipe. This pump generates a strong vacuum throughout the entire network of pipes. This suction force pulls groundwater from the surrounding soil, through the wellpoint screens, up the riser pipes, and into the header pipe. From there, the water is discharged away from the work area.
The system's capacity can be substantial. Flow rates may range from a few gallons per minute on small jobs to as much as 10,000 gallons per minute for large-scale construction or remediation projects. The area of influence for each well point varies based on the soil's permeability, as shown in the table below.
| Soil Permeability K (m/d) | Radius of Influence R (m) |
|---|---|
| 1–5 | 50–100 |
| 5–20 | 100–300 |
| 20–50 | 300–400 |
| 50–100 | 400–500 |
Key Components of the System
A complete well point dewatering system consists of several essential components working in unison. Each part plays a specific role in the successful removal of groundwater.
1.Wellpoints and Riser Pipes: A wellpoint is the tip of the assembly, featuring a filtered screen that allows water to enter while keeping soil out. It connects to a riser pipe, which is a vertical pipe that brings water from the wellpoint to the surface. Common materials for these components include:
· Screen Material: 304 or 316 Stainless Steel, Steel wedge wire, or PVC Slotted Pipe.
· Riser Material: Stainless Steel or PVC.
2.Header Pipes: The header pipe is a larger-diameter pipe laid horizontally on the ground. It connects all the riser pipes and transports the collected water and air to the pump. Proper header layout minimizes air leakage and friction loss.
3.The Pump: The pump is the heart of the system. It creates the vacuum and provides the force to move the water. While several pump types exist, vacuum-assisted wellpoint pumps are specifically designed for this application.
Centrifugal Pumps: Used for shallow wells and surface water.
Submersible Pumps: Placed directly inside a well, suitable for deeper applications.
Vacuum-Assisted Wellpoint Pumps: These are the standard for well point dewatering. They create a powerful vacuum to draw water from multiple well points simultaneously.

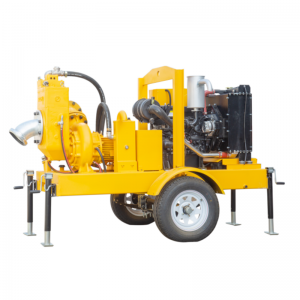

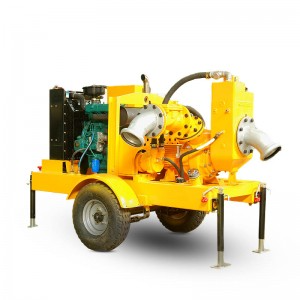

The TKFLO PUMPS TWP series is a premier example of a movable diesel engine drive Well Point Dewatering Pump. Its unique dry-running structure allows for automatic startup without initial priming, and its high-capacity air handling makes it exceptionally reliable for demanding dewatering projects.
Implementation, Benefits, and Considerations
Proper implementation of a well point dewatering system is crucial for project success. Understanding when to use it, how to install it, and what to consider ensures a safe and efficient worksite.
When to Use Well Point Dewatering
Project managers choose well point dewatering for specific ground conditions where other methods may be less effective. This system is particularly well-suited for managing groundwater in shallow to medium-depth excavations.
Wellpoint dewatering is highly effective in sandy or fine-grained soils that drain easily. It can lower the water table by approximately 5–6 meters (16–20 feet), making it ideal for many construction scenarios. The system is also valuable for stabilizing soils with low permeability, such as silts or sandy silts. In these fine-grained soils, where gravity drainage is slow, the vacuum force increases the hydraulic gradient, drawing down groundwater more effectively.
This versatility makes it a preferred solution for a wide range of projects, including:
· Building foundations
· Pipeline and utility trenching
· Road and bridge construction
· Large-scale civil engineering works, such as earth dam projects
Step-by-Step Installation Guide
A systematic installation process ensures the dewatering system operates at peak performance. The following steps outline a typical installation.
1.Site Assessment: A geotechnical engineer first analyzes the soil composition, permeability, and water table depth to design an effective system layout.
2.Wellpoint Installation: Workers use a high-pressure water jet to install the wellpoints around the excavation perimeter. The spacing and depth depend on the soil conditions and required drawdown.
3.Header Pipe Connection: The riser pipes from each wellpoint are connected to the main header pipe using flexible swing joints. The header pipe is laid horizontally and connected to the pump.
4.Pump Setup: The pump, such as a mobile unit from the TKFLO PUMPS TWP series, is positioned and connected to the header pipe. The discharge line is run to a designated, environmentally approved disposal area.
5.System Activation and Monitoring: The pump is started to create a vacuum and begin drawing water. Operators monitor the system continuously to ensure it achieves and maintains the target water table level.
Post-Installation Safety Checks
After installation, rigorous safety checks are mandatory to ensure a secure work environment.
1.Pump and Pipe Inspection: Operators must check pumps for wear or leaks and inspect all pipes and hoses for clogs or cracks. All connections must be secure.
2.Discharge Area Monitoring: The discharge area needs regular inspection to ensure proper water flow and prevent negative impacts on surrounding properties or ecosystems.
3.Continuous System Monitoring: The dewatering system requires 24/7 monitoring. It is wise to keep an additional standby pump on-site. Groundwater levels should be checked daily using piezometers.
4.Worker Safety Protocols: All personnel must wear appropriate Personal Protective Equipment (PPE). Clear signage should be placed around the dewatering area to indicate hazards and restricted access.
Key Benefits for Your Project
An effective dewatering system offers significant advantages that contribute directly to a project's bottom line and safety record.
· Enhanced Site Safety and StabilityBy lowering the water table, a well point system reduces pore water pressure in the soil. This process creates a "dewatering cone," which lessens the influence of groundwater on soil shear strength. The result is a dramatic improvement in slope stability, preventing collapses and ensuring a safe excavation for workers. Reducing the water head difference also weakens groundwater seepage, which is critical for preventing base instability.
· Improved Project Efficiency and TimelinesA dry and stable worksite allows construction activities to proceed without interruption. Excavation, foundation pouring, and utility installation can occur on schedule. For example, a South African gold mine that upgraded its dewatering pumps saw a 25% increase in productivity and a major reduction in downtime-related costs. This demonstrates how a reliable system directly accelerates project timelines.
· Cost-EffectivenessThe mobility and efficiency of modern pumps, like the diesel-driven TKFLO PUMPS TWP series, reduce operational costs. Their quick-start capabilities and robust construction minimize labor and maintenance needs. By preventing water-related delays and ensuring ground stability, the system helps avoid costly rework and project overruns.
Key Considerations for Your Project
While highly effective, a well point dewatering project requires careful planning to mitigate potential risks and ensure compliance.
| Consideration | Description | Key Actions |
|---|---|---|
| Ground Settlement | Dewatering can increase effective stress on soil, leading to settlement of adjacent structures, especially those on shallow footings. In sandy silts, this can occur quickly. | Conduct a thorough geotechnical analysis to predict potential displacement. Monitor nearby buildings for any signs of strain or damage. |
| Environmental Compliance | Discharging pumped groundwater is regulated. The U.S. Supreme Court ruled that a permit may be needed if a discharge into groundwater is the "functional equivalent" of a direct discharge into navigable waters. | Identify all local, state, and federal discharge regulations. Obtain necessary permits and ensure the discharge location and water quality comply with all legal requirements. |
| System Maintenance | Continuous operation depends on regular maintenance of the Well Point Dewatering Pump and all system components. Neglect can lead to system failure. | Implement a strict maintenance schedule. Regularly inspect pumps, check lubrication, clean intake screens, and document all findings and actions in a maintenance log. |
A Well Point Dewatering Pump offers a reliable method for managing groundwater. The system creates a dry, stable work area, ensuring project safety and efficiency. For shallow excavations in permeable soils, this system is an ideal choice.
One project successfully used a custom wellpoint system to manage groundwater just 1.1m below the surface, stabilizing the soil for deep excavations and demonstrating its effectiveness in challenging conditions.
FAQ
How deep can a well point system effectively dewater?
A standard system typically lowers the water table by 5–6 meters (16–20 feet). This depth is suitable for most shallow to medium-depth excavation projects.
Can the pump operate without drawing water?
Yes. Advanced pumps like the TKFLO TWP series have a dry-running structure. They start and restart automatically without needing initial liquid priming, which simplifies site operations.
What is the maximum solid size the pump can handle?
Robust pumps are designed to pass solid particles. The TKFLO TWP series, for example, can handle solids up to 75mm, making it a sensible choice for demanding conditions.
