A movable diesel engine silenced self-priming pump operates independently of grid power, delivering reliable water transfer in remote locations. Projects often encounter environments where electricity remains unavailable. These pumps use a diesel engine to drive the Self Priming Pump, ensuring quick startup and efficient operation.
Many industries request the Customized Movable Diesel Engine Silenced Type Specialized Self Priming Pump for its quiet performance and adaptability in challenging field conditions.
How Movable Diesel Engine Silenced Self-Priming Pumps Work

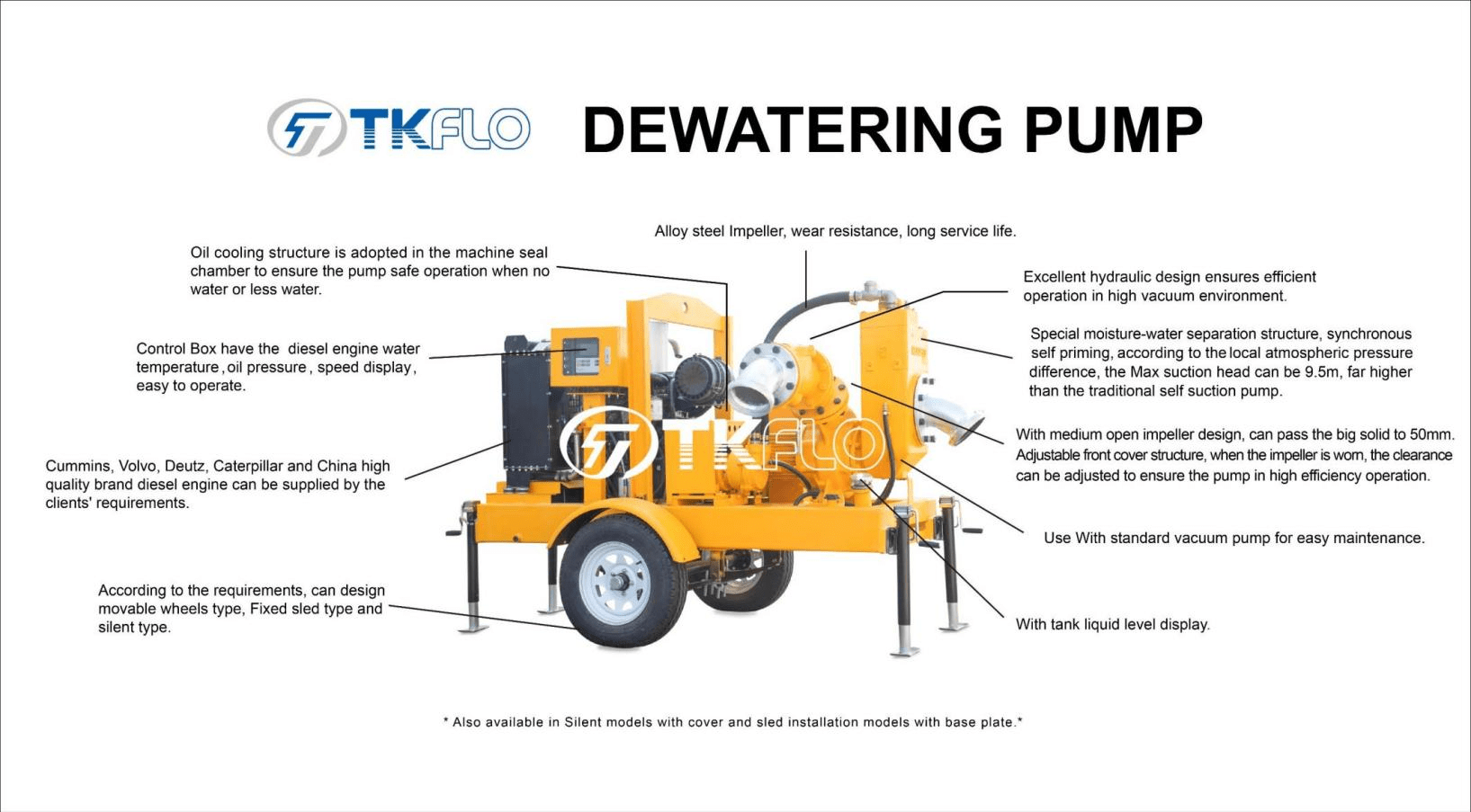

Key Components
Movable diesel engine silenced self-priming pumps contain several essential parts. Each component plays a specific role in the pump’s operation:
- Diesel Engine: This engine supplies the mechanical power needed to drive the pump. It operates independently of electrical sources.
- Self-Priming Pump Unit: The pump draws water or other fluids and creates the necessary suction for self-priming.
- Silencing Enclosure: This enclosure surrounds the engine and pump. It reduces noise levels during operation.
- Fuel Tank: The tank stores diesel fuel, allowing the pump to run for extended periods.
- Control Panel: Operators use this panel to start, stop, and monitor the pump’s performance.
- Chassis with Wheels: The chassis supports the entire unit and provides mobility for easy transport.
Note: The combination of these components ensures that the pump remains portable, efficient, and quiet, even in demanding environments.
The Self-Priming Process
Self-priming pumps can evacuate air from the suction line and begin pumping without manual priming. The process starts when the pump fills its casing with liquid. As the pump runs, it mixes air and liquid, pushing the air out through the discharge line. Once the air clears, the pump creates a vacuum that draws more liquid into the casing. This cycle continues until the pump achieves full prime and delivers a steady flow.
Operators benefit from this process because it saves time and reduces manual labor. Self-priming technology also prevents damage that can occur if a pump runs dry. Many industries choose the Customized Movable Diesel Engine Silenced Type Specialized Self Priming Pump for its reliable self-priming capability in remote or emergency situations.
How the Diesel Engine Powers the Pump
The diesel engine acts as the heart of the system. When an operator starts the engine, it turns a shaft connected to the pump. This shaft rotation drives the impeller inside the pump unit. The impeller’s movement creates suction, which draws fluid into the pump and pushes it out through the discharge pipe.
Diesel engines offer several advantages. They provide strong, consistent power and can operate for long hours without interruption. These engines also perform well in harsh conditions, such as construction sites or flood zones, where electric power may not be available. The silenced design ensures that the engine runs quietly, making the pump suitable for use in noise-sensitive areas.
Silencing Technology
Modern movable diesel engine silenced self-priming pumps use advanced silencing technology to reduce noise during operation. Engineers design these systems to meet strict noise regulations in urban and residential areas. The silencing enclosure surrounds the engine and pump, absorbing sound and preventing noise from escaping.
Manufacturers use several methods to achieve quiet operation:
- Acoustic Insulation: Thick layers of sound-absorbing material line the enclosure. This insulation traps engine noise and vibration.
- Specialized Mufflers: The exhaust system includes high-performance mufflers. These components lower the sound produced by the diesel engine.
- Vibration Dampening Mounts: Rubber or spring mounts support the engine and pump. These mounts absorb vibrations and prevent them from transferring to the chassis.
- Optimized Airflow Design: Engineers design air intake and exhaust paths to minimize noise. Baffles and ducts guide airflow while blocking sound waves.
Tip: Operators should check the enclosure for gaps or damage. Proper maintenance ensures the silencing technology works effectively.
The silenced design benefits many industries. Construction crews work near residential neighborhoods without disturbing local communities. Emergency response teams use pumps in flood zones where quiet operation helps maintain calm. Municipal workers rely on silenced pumps for nighttime repairs and maintenance.
The Customized Movable Diesel Engine Silenced Type Specialized Self Priming Pump offers enhanced silencing features. Clients request these pumps for sensitive environments, such as hospitals or schools. The specialized enclosure and muffler system keep noise levels low, even during extended use.
The table below highlights common silencing features and their benefits:
| Silencing Feature | Benefit |
|---|---|
| Acoustic Insulation | Reduces engine noise |
| Specialized Mufflers | Lowers exhaust sound |
| Vibration Dampening | Prevents noise from vibration |
| Optimized Airflow Design | Blocks and redirects sound |
Silencing technology improves safety and comfort for operators and nearby residents. Quiet pumps allow teams to work longer hours without violating noise ordinances. The right silencing system protects hearing and reduces stress in busy environments.
Main Benefits and Advantages
Portability and Flexibility
Movable diesel engine silenced self-priming pumps offer unmatched portability. Operators can transport these units to remote sites with ease. The chassis features sturdy wheels, allowing quick relocation across uneven terrain. Construction crews often move pumps between job sites without delay. Emergency teams deploy pumps rapidly during flood response operations.
Flexibility remains a key advantage. These pumps handle various fluids, including water, slurry, and wastewater. Users adjust flow rates and pressure settings to match specific project requirements. The design supports both temporary and permanent installations. Municipal workers rely on this flexibility for routine maintenance and urgent repairs.
Tip: Teams should select models with adjustable handles and reinforced frames for maximum mobility.
Quiet Operation
Silenced technology sets these pumps apart from standard models. The enclosure and muffler system reduce noise output significantly. Operators work near residential areas without disturbing local communities. Hospitals and schools benefit from quiet operation during maintenance activities.
The following table highlights typical noise levels:
| Pump Type | Average Noise Level (dB) |
|---|---|
| Standard Diesel Pump | 85-95 |
| Silenced Diesel Pump | 65-75 |
Lower noise levels improve safety and comfort for workers. Prolonged exposure to loud equipment can cause hearing damage. Silenced pumps protect hearing and support compliance with local noise regulations.
Reliable Performance in Challenging Conditions
Movable diesel engine silenced self-priming pumps deliver consistent performance in harsh environments. Diesel engines operate reliably in extreme temperatures and wet conditions. Self-priming technology prevents damage from dry running and ensures fast startup.
Operators trust these pumps during emergencies and on demanding job sites. The Customized Movable Diesel Engine Silenced Type Specialized Self Priming Pump withstands heavy use and frequent relocation. Industrial teams choose these units for their durability and low maintenance requirements.
Note: Regular inspection and maintenance extend the lifespan of the pump and maintain peak performance.
Fuel Efficiency and Cost Savings
Movable diesel engine silenced self-priming pumps deliver impressive fuel efficiency. Manufacturers design these pumps to use less fuel per hour than older or non-silenced models. The diesel engines run at optimal speeds, which reduces unnecessary fuel burn. Operators can expect longer run times on a single tank, even during demanding jobs.
Fuel efficiency leads directly to cost savings. Teams spend less money on diesel, especially during long-term projects. Lower fuel consumption also means fewer refueling stops, which saves time and reduces labor costs. Many companies choose these pumps because they help control operating budgets.
The silenced enclosure does more than reduce noise. It also improves engine performance by maintaining stable temperatures and protecting components from dust and debris. This protection helps the engine run smoothly and efficiently, further lowering fuel use.
The following table compares average fuel consumption and estimated daily operating costs:
| Pump Type | Average Fuel Use (L/hr) | Estimated Daily Cost* |
|---|---|---|
| Standard Diesel Pump | 5.5 | $66 |
| Silenced Diesel Self-Priming | 4.0 | $48 |
*Assumes 12 hours of operation at $1 per liter of diesel.
Tip: Regular maintenance, such as cleaning filters and checking fuel lines, keeps the pump running at peak efficiency and maximizes cost savings.
Over time, these savings add up. Companies that invest in fuel-efficient pumps see lower total ownership costs. They also reduce their environmental impact by burning less fuel and producing fewer emissions. Movable diesel engine silenced self-priming pumps offer a smart solution for teams that want reliable performance and long-term savings.
Comparison to Other Pump Types
Electric vs. Diesel Pumps
Electric pumps rely on a stable power supply. They suit indoor environments or locations with reliable electricity. Diesel pumps operate independently. They perform well in remote areas or during emergencies. Operators choose diesel pumps for flexibility and mobility.
| Feature | Electric Pump | Diesel Pump |
|---|---|---|
| Power Source | Electricity | Diesel Fuel |
| Portability | Limited | High |
| Noise Level | Low | Moderate to Low (silenced) |
| Maintenance | Less frequent | Regular engine checks |
| Use Case | Urban, indoor | Remote, outdoor, emergency |
Note: Diesel pumps provide a solution when electricity is unavailable. Electric pumps offer quiet operation and lower emissions.
Standard vs. Self-Priming Pumps
Standard pumps require manual priming. Operators must fill the pump casing before starting. This process can delay operations and increase labor. Self-priming pumps automate this step. They evacuate air and begin pumping without manual intervention.
Advantages of Self-Priming Pumps:
·Faster startup
·Reduced risk of dry running
·Lower maintenance needs
Standard Pump Limitations:
·Manual priming required
·Higher risk of damage if run dry
Self-priming pumps save time and protect equipment. They suit emergency response and frequent relocation.
Silenced vs. Non-Silenced Models
Silenced models feature enclosures and mufflers. These components reduce noise and vibration. Operators use silenced pumps near residential areas, hospitals, or schools. Non-silenced models produce higher noise levels. They may violate local noise regulations.
| Model Type | Noise Level (dB) | Suitable Locations |
|---|---|---|
| Silenced | 65-75 | Urban, sensitive sites |
| Non-Silenced | 85-95 | Industrial, remote sites |
Tip: Teams should select silenced models for projects in noise-sensitive environments. Silenced pumps improve safety and comfort for workers and communities.
Common Applications and Use Cases
Construction Sites
Movable diesel engine silenced self-priming pumps play a vital role on construction sites. Teams use these pumps to remove groundwater, dewater excavations, and manage stormwater. The portable design allows workers to relocate the pump as the project progresses. The silenced enclosure keeps noise levels low, which helps crews operate near residential areas without causing disturbances.
Key uses on construction sites include:
·Dewatering trenches and foundations
·Pumping water from flooded work zones
·Transferring slurry or wastewater
Tip: Project managers often select silenced models to comply with local noise regulations and maintain good relationships with nearby communities.
Emergency Flood Response
During flood emergencies, rapid water removal becomes critical. Emergency response teams rely on movable diesel engine silenced self-priming pumps for their quick deployment and reliable performance. These pumps operate independently of the electrical grid, which proves essential when power outages occur.
Advantages in flood response:
·Fast setup and mobility
·Continuous operation in harsh weather
·Quiet performance in residential neighborhoods
| Feature | Benefit |
|---|---|
| Self-priming ability | Immediate water removal |
| Diesel engine | Works without electricity |
| Silenced enclosure | Reduces stress and panic |
Note: Emergency crews often keep these pumps in their inventory for disaster preparedness.
Municipal and Industrial Uses
Municipalities and industries depend on these pumps for routine maintenance and special projects. Utility workers use them to clear blocked drains, maintain sewer systems, and support water treatment operations. Industrial teams deploy pumps for process water transfer, cooling systems, and spill containment.
Common municipal and industrial tasks:
·Cleaning stormwater drains
·Supporting water treatment plants
·Managing industrial wastewater
The silenced design ensures compliance with workplace safety standards and environmental regulations. Operators appreciate the fuel efficiency and low maintenance requirements, which help control operating costs.
Municipal engineers recommend these pumps for projects that require both mobility and quiet operation.
Agricultural Irrigation
Movable diesel engine silenced self-priming pumps support modern agriculture by providing reliable water delivery. Farmers often work in fields far from electrical infrastructure. These pumps allow irrigation systems to operate anywhere, even in remote locations. Diesel engines supply consistent power, which ensures steady water flow for crops.
Operators value the portability of these pumps. Wheels and sturdy frames make transportation across farmland easy. Teams can reposition units as irrigation needs change throughout the season. Silenced enclosures keep noise levels low, which protects livestock and maintains a peaceful environment.
Self-priming technology offers a major advantage. Farmers do not need to manually prime the pump before each use. The pump evacuates air and starts quickly, which saves time during busy planting or harvesting periods. Reliable startup reduces the risk of crop stress caused by delayed watering.
Common agricultural uses include:
·Supplying water to drip or sprinkler systems
·Filling irrigation canals or reservoirs
·Transferring water from rivers, ponds, or wells
·Managing wastewater from livestock operations
Tip: Farmers should select pumps with adjustable flow rates to match the specific needs of different crops.
The following table highlights key benefits for agricultural irrigation:
| Feature | Benefit |
|---|---|
| Portability | Easy movement across fields |
| Silenced Operation | Protects livestock and workers |
| Self-Priming | Fast startup, less downtime |
| Diesel Power | Works without electricity |
Movable diesel engine silenced self-priming pumps help farmers maximize crop yields. Efficient water management supports healthy growth and reduces waste. These pumps also lower operating costs by minimizing fuel use and maintenance requirements. Agricultural teams rely on these units to keep irrigation systems running smoothly throughout the growing season.
How to Choose the Right Pump
Assessing Your Needs and Site Conditions
Selecting the right movable diesel engine silenced self-priming pump begins with a thorough assessment of project requirements and site conditions. Teams should identify the main purpose of the pump. Will the pump handle clean water, slurry, or wastewater? Each fluid type demands specific pump features.
Site conditions play a critical role. Operators must evaluate the location for accessibility, terrain, and available space. Remote sites often require pumps with enhanced portability and rugged construction. Urban environments may need silenced models to comply with noise regulations.
Operators should consider these factors:
·Fluid Type: Water, slurry, or chemicals
·Distance to Water Source: Short or long suction lines
·Elevation Change: Height difference between source and discharge point
·Frequency of Use: Occasional or continuous operation
·Environmental Restrictions: Noise limits, emissions standards
Tip: Teams should document all site details before contacting suppliers. Clear information helps manufacturers recommend the best pump for each application.
Key Specifications to Consider
Pump specifications determine performance and suitability for each project. Teams must review technical data to ensure the pump meets operational demands. The most important specifications include flow rate, head, engine power, and noise level.
| Specification | Description | Why It Matters |
|---|---|---|
| Flow Rate (GPM/LPM) | Volume of fluid moved per minute | Matches project requirements |
| Total Head (ft/m) | Maximum height fluid can be lifted | Ensures proper discharge |
| Engine Power (HP/kW) | Output of the diesel engine | Supports pump performance |
| Suction/Discharge Size | Diameter of inlet/outlet pipes | Affects compatibility |
| Noise Level (dB) | Sound produced during operation | Meets local regulations |
| Fuel Tank Capacity | Amount of diesel stored | Determines run time |
Operators should compare these specifications with project needs. For example, a pump with a high flow rate suits flood response, while a lower flow rate may work for irrigation. Noise level remains crucial for urban or sensitive sites.
Note: Teams should request specification sheets from manufacturers. Detailed data helps prevent costly mistakes.
Sizing and Capacity
Proper sizing ensures efficient pump operation and prevents equipment failure. Teams must calculate the required capacity based on site conditions and fluid volume. Oversized pumps waste fuel and increase costs. Undersized pumps struggle to meet demand and may suffer damage.
Operators should follow these steps:
1.Estimate Total Volume: Calculate the amount of fluid to move each day.
2.Determine Required Flow Rate: Divide total volume by available operating hours.
3.Measure Total Head: Add vertical lift and friction losses in hoses or pipes.
4.Select Pump Model: Choose a pump that meets or exceeds flow and head requirements.
For example, a construction crew needs to dewater a trench holding 24,000 gallons. They want the job done in 8 hours. The required flow rate equals 3,000 gallons per hour, or 50 gallons per minute. If the discharge point sits 20 feet above the water source, the pump must handle at least 20 feet of total head.
| Task | Calculation Example |
|---|---|
| Total Volume | 24,000 gallons |
| Operating Hours | 8 hours |
| Required Flow Rate | 3,000 gallons/hour (50 GPM) |
| Total Head | 20 feet |
Teams should consult pump sizing charts or use manufacturer calculators. Accurate sizing maximizes efficiency and extends equipment lifespan.
Noise Level Requirements
Noise levels play a critical role when selecting a movable diesel engine silenced self-priming pump. Many projects take place near residential areas, hospitals, or schools. Operators must comply with local noise ordinances to avoid fines and complaints. Manufacturers design silenced pumps to meet strict decibel limits.
Most urban environments set maximum allowable noise levels between 65 and 75 decibels (dB) during daytime hours. Sensitive sites, such as medical facilities, may require even lower thresholds. Teams should measure ambient noise before installation. They must compare pump specifications with site requirements.
| Environment | Typical Noise Limit (dB) | Recommended Pump Type |
|---|---|---|
| Residential | 65-70 | Silenced diesel self-priming |
| Hospital/School | 60-65 | Advanced silenced enclosure |
| Industrial/Remote | 80-90 | Standard diesel pump |
Operators should check the manufacturer's noise ratings. They must verify if the pump meets local standards. Many suppliers provide certified test results. Teams should request documentation before purchase or rental.
Tip: Place the pump away from occupied buildings. Use barriers or acoustic screens to further reduce noise impact.
Some pumps feature adjustable speed controls. Lowering engine speed can decrease noise output. Teams should balance flow requirements with acceptable sound levels. Regular maintenance also helps. Clean mufflers and intact enclosures ensure optimal silencing performance.
Noise level requirements protect workers and communities. They create a safer, more comfortable job site. Teams that follow these guidelines build trust with clients and neighbors.
Brand and Manufacturer Reputation
Brand reputation influences pump selection as much as technical specifications. Reliable manufacturers invest in quality materials and advanced engineering. They offer pumps that perform consistently in demanding conditions.
Operators should research brands before making decisions. Leading manufacturers provide detailed product information, warranty coverage, and after-sales support. They maintain transparent communication and respond quickly to service requests.
Key factors to consider include:
·Product Quality: Top brands use durable components. Their pumps withstand frequent relocation and harsh environments.
·Innovation: Reputable manufacturers develop advanced silencing technology and fuel-efficient engines.
·Customer Service: Strong support teams assist with installation, troubleshooting, and maintenance.
·Certifications: Trusted brands meet international standards for safety, noise, and emissions.
| Brand Attribute | Why It Matters |
|---|---|
| Quality Materials | Extends pump lifespan |
| Technical Support | Reduces downtime |
| Warranty Coverage | Protects investment |
| Industry Certifications | Ensures compliance |
Operators should read customer reviews and case studies. They should ask suppliers for references from similar projects. Many teams prefer brands with proven track records in construction, emergency response, and agriculture.
Note: Investing in a reputable manufacturer reduces risk. Teams gain confidence in pump reliability and long-term performance.
Brand reputation shapes the overall experience. It affects maintenance costs, operational efficiency, and project success. Teams that choose trusted manufacturers benefit from expert guidance and dependable equipment.
Customized Movable Diesel Engine Silenced Type Specialized Self Priming Pump
Customization Options
Manufacturers offer a wide range of customization options for these pumps. Clients can select features that match their specific project needs. Some common customization choices include:
·Pump Material: Teams can choose stainless steel, cast iron, or special alloys for corrosion resistance.
·Engine Size and Type: Operators may request engines with different power ratings or emission standards.
·Silencing Enclosure Design: Some projects require advanced acoustic insulation or compact enclosures for tight spaces.
·Control Systems: Digital control panels, remote monitoring, and automatic start-stop functions improve usability.
·Mobility Features: Heavy-duty wheels, lifting hooks, and reinforced frames make transport easier.
·Fuel Tank Capacity: Larger tanks support longer run times between refueling.
Note: Customization ensures the pump meets unique site requirements and maximizes operational efficiency.
The table below highlights popular customization options and their benefits:
| Custom Feature | Benefit |
|---|---|
| Stainless Steel Body | Resists corrosion |
| Digital Controls | Simplifies operation |
| Extra Fuel Capacity | Extends run time |
| Enhanced Silencing | Reduces noise further |
When to Consider a Specialized Solution
A specialized solution becomes necessary when standard models cannot meet project demands. Teams should consider a Customized Movable Diesel Engine Silenced Type Specialized Self Priming Pump in the following situations:
1.Challenging Environments: Sites with extreme temperatures, high humidity, or corrosive fluids require tailored materials and designs.
2.Strict Noise Regulations: Urban projects or sensitive locations, such as hospitals, need advanced silencing technology.
3.Unique Fluid Types: Handling chemicals, slurry, or abrasive liquids often calls for special pump linings and seals.
4.Space Constraints: Compact enclosures and custom chassis fit pumps into tight or irregular spaces.
5.Extended Operation: Projects that run pumps for long hours benefit from larger fuel tanks and heavy-duty components.
Tip: Consulting with manufacturers helps teams identify the best customization options for their application.
Specialized pumps deliver reliable performance and long-term value. Teams that invest in customization reduce downtime and avoid costly modifications later.
Renting vs. Purchasing: Which Is Best?
Pros and Cons of Renting
Renting a movable diesel engine silenced self-priming pump offers flexibility for short-term projects. Teams can access the latest models without a large upfront investment. Rental providers often handle maintenance and repairs, which reduces downtime. Operators can scale equipment needs based on project size.
Advantages of Renting:
·Lower initial cost
·Access to modern equipment
·Maintenance included
·Quick replacement if issues arise
Disadvantages of Renting:
·No ownership of equipment
·Rental fees add up over time
·Limited customization options
Tip: Renting works best for emergency response or seasonal projects. Teams avoid long-term commitments and can adjust equipment as needs change.
Pros and Cons of Buying
Purchasing a pump gives teams full control over equipment. Owners can customize features to match specific requirements. Long-term projects benefit from consistent access to the pump. Companies build equity in their assets and avoid recurring rental fees.
Advantages of Buying:
·Full ownership and control
·Customization available
·Cost savings for frequent use
·Asset value retained
Disadvantages of Buying:
·High upfront cost
·Responsibility for maintenance and repairs
·Depreciation over time
Note: Buying suits companies with ongoing or large-scale operations. Ownership allows for tailored solutions and long-term planning.
Cost Considerations
Teams must compare total costs before deciding. Rental agreements include monthly or weekly fees. Maintenance and insurance often come with the rental package. Purchasing requires a significant initial investment, plus ongoing expenses for upkeep and repairs.
| Option | Upfront Cost | Ongoing Fees | Maintenance | Customization |
|---|---|---|---|---|
| Renting | Low | High | Included | Limited |
| Buying | High | Low | Owner pays | Extensive |
Operators should estimate project duration and frequency of use. Short-term needs favor renting, while long-term or repeated use makes buying more economical. Teams should consult financial experts to analyze total ownership costs versus rental expenses.
Teams that understand their budget and project timeline make informed decisions. Careful planning ensures the best value for every application.
When to Rent and When to Buy
Deciding whether to rent or buy a movable diesel engine silenced self-priming pump depends on several project factors. Teams must evaluate the duration, frequency, and urgency of their needs before making a commitment.
Renting works best in these situations:
·The project has a short timeline or is seasonal.
·The team faces unexpected emergencies, such as flood response.
·The company wants to test different pump models before purchasing.
·The budget does not allow for a large upfront investment.
·Maintenance and repairs need to be handled by the rental provider.
Buying becomes the preferred choice when:
·The pump will be used regularly or for long-term projects.
·The team requires specific customizations for unique site conditions.
·The company wants full control over equipment and maintenance schedules.
·Ownership offers better value over time compared to ongoing rental fees.
·The organization plans to build a fleet for multiple projects.
Tip: Teams should review their project calendar and estimate total usage hours. Frequent use often justifies the investment in ownership.
The following table summarizes key decision points:
| Scenario | Recommended Option |
|---|---|
| Short-term or emergency use | Rent |
| Long-term, repeated operations | Buy |
| Need for advanced customization | Buy |
| Limited budget, quick deployment | Rent |
| Desire for asset ownership | Buy |
Teams should consult with pump suppliers and financial advisors before making a final decision. Careful planning ensures the right choice for both immediate needs and future growth. Selecting the best option helps maximize efficiency and control costs throughout the project lifecycle.
Installation, Maintenance, and Troubleshooting
Basic Installation Steps
Proper installation ensures reliable pump performance. Teams should follow these steps for safe and effective setup:
1.Inspect the Site: Check the ground for stability. Place the pump on a flat, solid surface.
2.Position the Pump: Set the unit close to the water source. Avoid long suction hoses to reduce loss of efficiency.
3.Connect Hoses: Attach the suction and discharge hoses securely. Use clamps to prevent leaks.
4.Fill the Pump Casing: Add water to the pump casing if required. This step helps with initial priming.
5.Check Fuel and Oil: Fill the fuel tank and check engine oil levels.
6.Start the Engine: Use the control panel to start the diesel engine. Monitor gauges for normal readings.
Tip: Always follow the manufacturer’s installation manual for specific instructions and safety guidelines.
Routine Maintenance Tips
Regular maintenance extends the pump’s lifespan and reduces downtime. Operators should create a maintenance schedule and stick to it.
·Daily Checks: Inspect fuel, oil, and coolant levels. Look for leaks or loose connections.
·Weekly Tasks: Clean air filters and check the condition of hoses and clamps.
·Monthly Inspections: Examine the silencing enclosure for damage. Test the control panel and safety features.
·After Each Use: Flush the pump with clean water, especially if pumping slurry or chemicals.
| Maintenance Task | Frequency | Purpose |
|---|---|---|
| Check oil level | Daily | Prevent engine damage |
| Clean air filter | Weekly | Ensure airflow |
| Inspect enclosure | Monthly | Maintain noise control |
Note: Keeping a maintenance log helps track service intervals and repairs.
Common Issues and Solutions
Operators may face common problems during pump operation. Quick troubleshooting keeps projects on schedule.
·Pump Fails to Prime: Check for air leaks in the suction hose. Ensure the pump casing is filled with water.
·Low Flow Rate: Inspect hoses for blockages. Clean the strainer and check for worn impellers.
·Engine Will Not Start: Verify fuel supply and battery charge. Examine the control panel for error codes.
·Excessive Noise: Inspect the silencing enclosure for gaps. Tighten loose bolts and replace damaged insulation.
If problems persist, contact the manufacturer or a qualified technician for support. Prompt action prevents further damage and costly repairs.
Safety Precautions
Operators must follow strict safety protocols when working with movable diesel engine silenced self-priming pumps. These machines contain powerful engines and moving parts. Proper handling prevents accidents and extends equipment life.
Key Safety Guidelines:
·Wear Personal Protective Equipment (PPE): Operators should always use gloves, safety goggles, and hearing protection. Diesel engines can produce loud noise and hot surfaces.
·Check for Leaks: Before starting the pump, inspect all hoses and connections for fuel, oil, or coolant leaks. Leaks can cause fires or environmental hazards.
·Ensure Proper Ventilation: Diesel engines emit exhaust gases. Operators should never run the pump in enclosed spaces. Good airflow prevents carbon monoxide buildup.
·Secure the Pump: Place the unit on stable, level ground. Lock the wheels to prevent movement during operation.
·Keep Area Clear: Remove debris and flammable materials from the work zone. Maintain a safe distance from the pump while it runs.
·Follow Lockout Procedures: Before performing maintenance, shut down the engine and disconnect the battery. This step prevents accidental startups.
·Monitor Noise Levels: Even with silencing technology, prolonged exposure to noise can harm hearing. Use ear protection and limit time near the pump.
⚠️ Tip: Always read the manufacturer’s safety manual before operating or servicing the pump.
Common Hazards and How to Avoid Them:
| Hazard | Prevention Tip |
|---|---|
| Fuel Spills | Refuel only when engine is off and cool |
| Hot Surfaces | Allow engine to cool before touching |
| Electrical Shock | Inspect control panel for damage |
| Moving Parts | Keep hands and tools away when running |
Operators who follow these precautions protect themselves and their teams. Safe practices also reduce downtime and costly repairs. Regular safety training ensures everyone understands the risks and proper procedures.
Practical Tips for Getting the Most Out of Your Pump
Maximizing Efficiency
Operators achieve optimal pump performance by following proven strategies. They monitor fuel consumption and adjust engine speed to match the required flow rate. Regular inspection of hoses and connections prevents leaks and maintains pressure. Teams clean filters and strainers to avoid blockages that reduce output.
·Check fluid levels before each use.
·Inspect suction and discharge hoses for wear.
·Adjust engine speed for the task at hand.
·Clean filters weekly.
Tip: Operators should record daily performance metrics. Tracking flow rates and fuel use helps identify areas for improvement.
A well-maintained pump delivers consistent results and reduces operating costs. Teams who focus on efficiency complete projects faster and save resources.
Extending Equipment Lifespan
Proper care extends the life of a movable diesel engine silenced self-priming pump. Operators follow a maintenance schedule and address minor issues quickly. They store the pump in a dry, secure location when not in use. Routine cleaning prevents corrosion and buildup.
| Maintenance Task | Frequency | Benefit |
|---|---|---|
| Lubricate moving parts | Monthly | Reduces wear |
| Inspect enclosure | Monthly | Maintains silencing |
| Replace worn hoses | As needed | Prevents breakdowns |
Teams replace damaged components promptly. They use only manufacturer-approved parts to ensure compatibility. Operators keep detailed service records to track repairs and replacements.
Note: Consistent maintenance protects the pump from costly failures and downtime.
Working with Rental or Sales Providers
Successful projects depend on strong relationships with equipment providers. Teams communicate their needs clearly and request detailed specifications. They review rental agreements or purchase contracts for service terms and warranty coverage.
·Ask for operator training and support.
·Request maintenance history for rental units.
·Verify certification and compliance documents.
Providers offer valuable advice on model selection and customization. Operators benefit from technical support and quick access to replacement parts.
Tip: Teams should build long-term partnerships with trusted suppliers. Reliable providers help ensure smooth operations and fast problem resolution.
Movable diesel engine silenced self-priming pumps deliver reliable, quiet, and portable performance for demanding projects. Teams should review site requirements, compare specifications, and consider both short-term and long-term costs. Renting suits emergency or seasonal needs, while buying benefits frequent use and customization.
Professionals recommend consulting pump experts before making a decision. Careful planning ensures the right pump supports project success and safety.
FAQ
What maintenance does a movable diesel engine silenced self-priming pump require?
Operators should check oil, fuel, and filters daily. Monthly inspections of hoses, enclosures, and control panels help prevent breakdowns. Regular cleaning and prompt replacement of worn parts extend the pump’s lifespan.
How long can these pumps run on a full tank?
Most models operate for 8 to 12 hours on a full tank, depending on engine size and workload. Larger fuel tanks or efficient engines may provide longer run times.
Are silenced pumps suitable for use near residential areas?
Yes. Silenced pumps feature advanced enclosures and mufflers. These components keep noise levels between 65 and 75 dB, making them ideal for urban or sensitive environments.
Can these pumps handle fluids other than water?
Many models can pump slurry, wastewater, or light chemicals. Operators should confirm compatibility with the manufacturer before using the pump for non-water fluids.
What should operators do if the pump fails to prime?
Operators should check for air leaks in the suction hose, ensure the casing contains enough water, and inspect for blockages. If issues persist, contacting technical support is recommended.
Post time: Nov-13-2025
sales@tkflow.com
